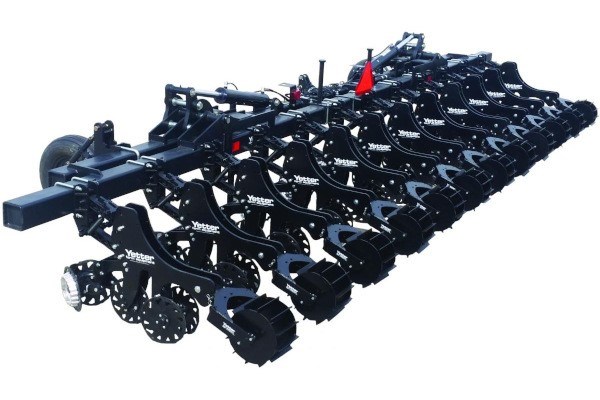

Yetter 3831-101 31' Double-Frame Toolbar

New Equipment / All Lines / Yetter / Toolbar-Mount Coulters/Toolbars/Rotary Hoes / Toolbars / Double-Frame Hydraulic Locking Toolbar / 3831-101 31' Double-Frame Toolbar
Yetter 3831-101 31' Double-Frame Toolbar for sale at White's Farm Supply

Double tap to zoom

Yetter 3831-101 31' Double-Frame Toolbar for sale at White's Farm Supply

Double-Frame Hydraulic Locking Toolbar 3831-101 31' Double-Frame Toolbar

The Double-Frame Hydraulic Locking Toolbar can be customized for a variety of applications, including strip-tillage, pre-plant or side-dress, fertilizing, and more. The toolbar can either fold flat or onto an optional stand rest for transport. It is available in two widths: 31' and 41'.



Features

  • Wings can be set to lock using the over-the-center hydraulic lockdown design or can be set to float
  • Can be customized for odd or even row spacing depending on the application of the attachment
  • Center and wing sections constructed of 7" x 7" bars with 3/8" wall tubing
  • Wings fold flat using 5" x 24" hydraulic cylinders; adjustable stop-stands can be added
  • Features 5" spacing between front and back bar
  • Fits category 3N, category 3 and category 4N hitches
  • Optional gauge wheels are adjustable with ratcheting turnbuckle to control operating depth
  • Optional rear hitch
  • Includes parking stand

Specs



Model 3831-101 31' Double Frame Toolbar
Actual Length 30'7"
Folded Width 16'
Weight 3,000 lbs.
Hydraulic cylinders 5"x24"
