Pathfinder™ FS2100 5901752

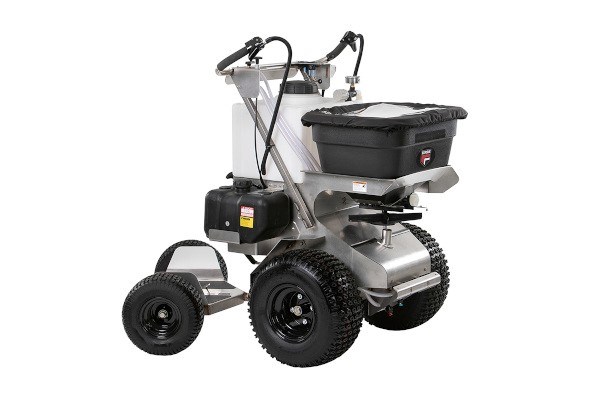

The Pathfinder™ FS2100 ride-on spreader/sprayer releases dry and liquid material with a spray system that has settings for both trim and broadcast applications. The stainless steel frame and Peerless transaxle resist corrosive chemicals for longevity and durability, and a 35.5" width means easy access through tight areas like gates.
Features
100 lbs. Spyker Hopper
The Pathfinder™ FS2100 hopper will handle up to 100 lbs. of granular material providing over one acre of maximum coverage.
12 Gallons of Liquid Capacity
Covers a maximum of 1.1 acres between fill-ups.
Selectable Spray Width
The Pathfinder™ FS2100 allows the operator to select between two spray widths. A 3' spray width is perfect for trim applications and narrow spaces. A 10' broadcast spray is used for wide open spaces.
100% Stainless Steel Frame
Stainless steel resists corrosion from the granular and liquid chemicals distributed by the unit.
Best-in-Class Maneuverability
A low-friction sulky pivots on a 3/4" tapered roller bearing for smooth movement. No mechanical steering assistance is required.
Specs
| Engine Model | GX200-URH2 |
| RPM | Full Speed: 3750 RPM (No load) Idle: 1400 RPM |
| Fuel Capacity - gal (L) | 2.5 (9.5) |
| Fuel Type | Regular unleaded gasoline, 87 octane or higher |
| Fuel Shut-Off Valve | Located on engine and below tank |
| Transmission Model | Peerless 855 Series, coated for corrosion resistance |
| Speed | Low Gear: 3.5 mph (5.6 km/hr) High Gear: 5.0 mph (8.0 km/hr) |
| Front Tires | 18 x 9.5 - 8, RV antifreeze added for ballast and traction |
| Rear Tires | 13 x 6.50 - 6 |
| Spreader Model | Spyker 120 Series |
| Spreader Hopper Capacity (lbs.) | 100 |
| Spray Pump | 2.0 gpm mechanically driven diaphragm pump |
| Sprayer Tank Capacity - gal (L) | 12.0 (45.4) |
| Nozzles | Broadcast: Turbo FloodJet TF-VS5 Trim: Turbo TeeJet TT11004VP |
| Spray Rate | Adjustable from 1/4 to 1/2 gallon per thousand square feet |
| Overall Length - in. (cm) | 54.0 (137) |
| Overall Width - in. (cm) | 35.5 (90) |
| Overall Height - in. (cm) | 49.0 (124) |
| Dry Weight - lbs (kg) | 420 (190) |
| Full Weight - lbs (kg) | 640 (290) |
| Safety Interlock | This machine is equipped with a neutral safety start module. To start the engine, the transmission must be in the neutral (N) position. |
Accessories and Attachments
SPRAY WAND
Spray wand attachment taps into the liquid tank for spot treatment of trouble spots or gardens.
SPRAY BAR
Spray bar attachment converts the central spray nozzle on the Pathfinder™ FS2100 into three spray points.
SALT SPREADER BAFFLE
Allows the Pathfinder™ FS2100 to spread salt to extend seasonal use. Not to be used with rock salt.
SPARE PARTS KIT
A convenient package of high-wear parts that allow for fast service and maintenance.
