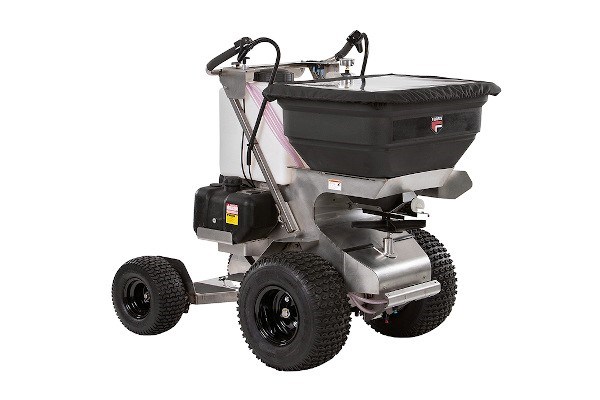

Pathfinder XC™ FS2200 5901753
Upgrade the ride-on sprayer/spreader experience with the Pathfinder XC™ FS2200. It has the same durable components, compact 35.5" frame, and dry and liquid capabilities as the Pathfinder. Plus it offers best-in-class maneuverability, a 200-pound granular hopper, and 1.4 acres of liquid coverage making crews more efficient.
Features
200 lbs. Spyker Hopper
The Pathfinder XC™ FS2200 hopper will handle up to 200 lbs. of granular material providing over one acre of maximum coverage.
16 Gallons of Liquid Capacity
Covers a maximum of 1.4 acres between fill-ups.
Selectable Spray Width
The Pathfinder XC™ FS2200 allows the operator to select between two spray widths. A 3’ spray width is perfect for trim applications and narrow spaces. A 10’ broadcast spray is used for wide open spaces.
100% Stainless Steel Frame
Stainless steel resists corrosion from the granular and liquid chemicals distributed by the unit.
Best-in-Class Maneuverability
A low-friction sulky pivots on a ¾” tapered roller bearing for smooth movement. No mechanical steering assistance is required.
Compact Size
The Pathfinder XC™ FS2200 fits easily through a 36” gate, providing access to residential areas and condominium common areas.
Specs
| Engine Model | GX200-URH2 |
| RPM | Full Speed: 3750 RPM (No Load) Idle: 1400 RPM |
| Fuel Capacity - gal (L) | 2.5 gal (9.5 L) |
| Fuel Type | Regular unleaded gasoline, 87 octane or higher |
| Fuel Shut-Off Valve | Located on engine and below tank |
| Transmission Model | Peerless 855 Series, coated for corrosion |
| Speed | Low Gear: 3.5 mph (5.6 km/hr) High Gear: 5.0 mph (8.0 km/hr) |
| Front Tires | 18 x 9.5 - 8, RB antifreeze added for ballast and traction |
| Rear Tires | 13 x 6.50 - 6 |
| Spreader Model | Spyker 220 Series |
| Spreader Hopper Capacity (lbs.) | 200 |
| Spray Pump | 2.0 gpm mechanically driven diaphragm pump |
| Sprayer Tank Capacity - gal (L) | 16.0 (60.6) |
| Nozzles | Broadcast: Turbo FloodJet TF-VS5 Trim: TurboTeeJet TT11004VP |
| Spray Rate | Adjustable from 1/4 to 1/2 gallon per thousand feet |
| Overall Length - in. (cm) | 58.0 (147) |
| Overall Width - in. (cm) | 35.5 (90) |
| Overall Height - in. (cm) | 49.0 (124) |
| Dry Weight - lbs. (kg) | 450 (204) |
| Full Weight - lbs. (kg) | 670 (304) |
| Safety Interlock | This machine is equipped with a neutral safety start module. To start the engine, the transmission must be in the neutral (N) position. |
Accessories and Attachments
SPRAY WAND
Spray wand attachment taps into the liquid tank for spot treatment of trouble spots or gardens.
SPRAY BAR
Spray bar attachment converts the central spray nozzle on the Pathfinder™ XC FS2200 into three spray points.
SALT SPREADER BAFFLE
Allows the Pathfinder™ XC FS2200 to spread salt to extend seasonal use. Not to be used with rock salt.
SPARE PARTS KIT
A convenient package of high-wear parts that allow for fast service and maintenance.
