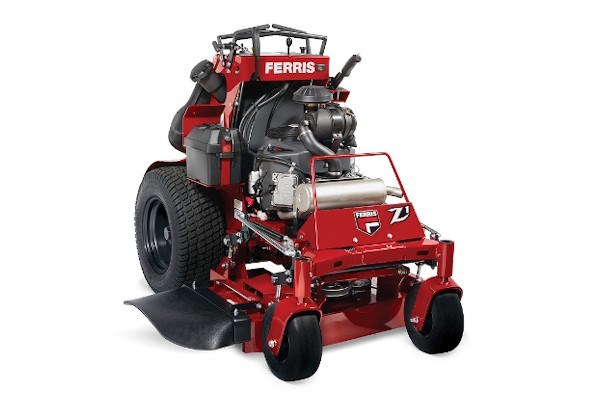

SRS™ Z1 5901940
Ideal for tight gates and smaller trailers the SRS Z1 offers excellent productivity in a compact frame. True to the Soft Ride Stand-on (SRS) series, the adjustable operator platform on the Z1 features suspension technology, improving operator comfort and performance.
Features
Suspension Platform System
The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.
Adjustable Height of Cut
Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 4.5".
Speed Control Setting
The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.
Standing Comfort
Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.
Integrated Mowing Transmissions
Commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans are designed for high performance and are fully serviceable.
iCD™ Cutting System
Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.
Generous Fuel Capacity
A 6-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.
Specs
| Model Number | 5901940 |
| Engine Brand | Kawasaki® FX691V |
| Engine Power Rating (hp) * | 22 |
| Starter | Electric |
| Displacement (cc) | 726 |
| PTO | Electric |
| Cylinders | 2 |
| Fuel Tank Capacity (gal) | 6 |
| Cutting Width (in) | 48 |
| Cutting Height (in) | 1.75-4.5 |
| Spindles | Aluminum Greaseable |
| Suspension | Adjustable coil-over-shock; Operator Suspension Platform |
| Transmission | Hydro-Gear® ZT-3400® transaxles with 7" cooling fans |
| Drive Axles (in) | 1.125 |
| Drive Tires (in) | 23 x 10.5-12 |
| Caster Tires (in) | 11 x 4-5, Flat-free |
| Ground Speed-Fwd (mph) | 0-8 |
| Ground Speed-Rev (mph) | 0-4 |
| Overall Length (in) | 65 |
| Overall Width (in) Deflector Down/Deflector Up | 59.5 / 54 |
| Dry Weight (lbs) | 866 |
| Seat Package | N/A |
| Certified Roll-over Protection System | N/A |
| Instrumentation | Dual-function hour meter, fuel level gauge |
| Safety Group/Controls | Operator presence in platform, parking brake safety circuit for starting engine, automatic PTO restart |
| Parking Brake / Safety Circuit | Hand-operated internal transaxle brake |
Accessories and Attachments
LED Light Kit
Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.
Mulch Kit
Kit includes dedicated mulching blades, baffles, hardware and instructions.
Striping Kit
Rubber flap lays down grass to create patterns across the landscape. Fits 48" model.
Flat-Free Caster Tires
Eliminate downtime by running all-day with flat-free caster tires.
Metal Grass Catcher
Rugged steel-framed catcher has handles that make attaching and removing a breeze. Capacity: 3.5 bushels. Fits 36" and 48" models.
