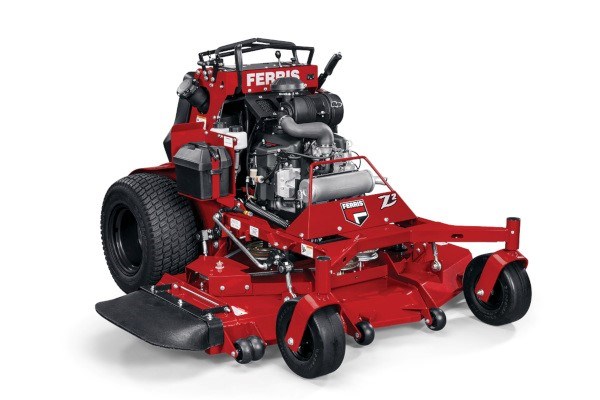

SRS™ Z2 5902070
The Soft Ride Stand-On SRS™ Z2 features our adjustable operator platform with suspension technology that optimizes operator comfort and increases productivity without sacrificing quality-of-cut. The superior balance on the Z2 provides excellent stability and maneuverability that exceeds expectations for traction and handling.
Features
Suspension Platform System
The suspension platform system is adjustable for a large range of weights and operating conditions, optimizing operator comfort and increasing productivity.
500 Hour Oil Change (Select Models)
Vanguard™ Engines with Oil Guard System reduce maintenance time and costs by up to 60%.**
Fuel Capacity
Generous 8-gallon fuel tank is centrally located for consistent balance, and the fuel filler neck is conveniently located on the side for easy filling.
Vanguard™ 810cc EFI engines
Vanguard™ 810cc engines deliver the optimum power, performance and efficiency commercial zero-turn mowers need.
Speed Control Setting
The easy locking 3-position speed control setting is conveniently located and requires no tools to facilitate smooth operation in a wide range of conditions.
Standing Comfort
Ergonomically designed thigh pad provides superior operator comfort and stability, especially on hilly terrain.
Adjustable Height of Cut
Height of cut is easily changed from the operator compartment for no hassle curb climbing and trailer loading. The hand-operated deck lift can change cut height in 1/4" increments from 1.75"- 5".
Integrated Mowing Transmissions
Commercial Hydro-Gear® ZT-3800® transaxles are designed for high performance and are fully serviceable.
iCD™ Cutting System
Innovative iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions.
Specs
| Model Number | 5902070 |
| Engine Brand | Vanguard™ 810 EFI with Oil Guard |
| Engine Power Rating (hp) * | 28 |
| Starter | Electric |
| Displacement (cc) | 810 |
| PTO | Electric |
| Cylinders | 2 |
| Fuel Tank Capacity (gal) | 8 |
| Deck Construction | iCD™ Cutting System |
| Cutting Width (in) | 60 |
| Cutting Height (in) | 1.75 - 5 |
| Spindles | Cast-iron |
| Suspension | Adjustable coil-over-shock; Operator Suspension Platform |
| Transmission | Dual, commercial Hydro-Gear® ZT-3800® transaxles with 7" cooling fans and oil coolers |
| Drive Axles (in) | 1.125 |
| Drive Tires (in) | 23 x 10.5-12 |
| Caster Tires (in) | 13 x 5-6, Flat-free |
| Ground Speed-Fwd (mph) | 0 - 10 |
| Ground Speed-Rev (mph) | 0 - 5 |
| Overall Length (in) | 72.75 |
| Overall Width (in) Deflector Down/Deflector Up | 74 / 65 |
| Dry Weight (lbs) | 1051 |
| Seat Package | N/A |
| Certified Roll-over Protection System | N/A |
| Instrumentation | Dual-function hour meter, fuel level gauge |
| Safety Group/Controls | Operator presence in platform, Parking brake safety circuit for starting engine, Automatic PTO restart |
| Parking Brake / Safety Circuit | Hand operated; Internal transaxle brake |
Accessories and Attachments
LED Light Kit
Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.
Mulch Kit
Kit includes dedicated mulching blades, baffles, hardware and instructions.
Striping Kit
Rubber flap lays down grass to create patterns across the landscape. Fits 48" model.
Flat-Free Caster Tires
Eliminate downtime by running all-day with flat-free caster tires.
Metal Grass Catcher
Rugged steel-framed catcher has handles that make attaching and removing a breeze. Capacity: 3.5 bushels. Fits 52" model.
