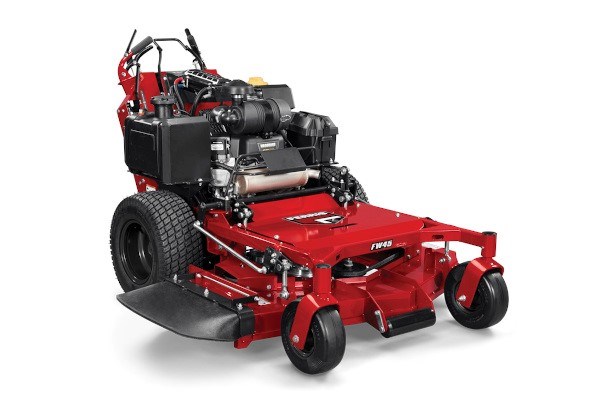

FW45 5902014
The FW45 is engineered for performance, productivity, and comfort. The three available deck sizes allow for maneuverability while engine options provide the power a commercial walk mower needs. Pairing comfort features like ergonomically designed controls with easy maintenance and durability mean the FW45 can handle whatever is thrown at it.
Features
Added Power and Performance
Powered by a 28 hp* Vanguard® 810 EFI Engine with Oil Guard™, you will get a 500-hour oil change interval that can reduce maintenance time and costs by 60%**. (Select models)
Cool Oil for Efficient Use
External oil coolers for the dual Hydro-Gear ZT-3400 transaxles reduce oil temperature by as much as 25%, plus a new quick fill system makes maintenance that much easier.
Gas Tank Guard
Additional protection has been added to protect the gas tank from obstacles and debris.
Enhanced Foot Pedal Support
Upgraded with dual solid-steel return-to-neutral foot pedals for better user support.
New Spindle Access
We listened closely to our commercial users when considering the enhancements on our redesigned mower deck. The new, improved deck provides a new spindle easy-access slot for faster greasing and accessibility.
Ergonomic Parking Brake
We modified and added an angles parking brake that is pulled into the frame to prevent snagging or bending. This now provides instant access with minimal operator effort to each and engage.
Enhanced Muffler Guard
Enhanced muffler guard has been added to protect the O2 sensor on the EFI Oil Guard models.
Hydro-Gear® ZT-3400™ Transaxles
Dual commercial grade transaxles with remote oil coolers that reduce oil temperature by as much as 25% and feature 1.125" tapered axle, forged steel bull gear and steel cut pinion gear for enhanced performance in commercial applications.
Specs
| Model Number | 5902014 |
| Engine Brand | Kawasaki® FX651V |
| Engine Power Rating (hp)* | 20.5 |
| Displacement (cc) | 726 |
| PTO | Electric |
| Cylinders | 2 |
| Starter | Electric |
| Fuel Tank Capacity (gal) | 5 |
| Cutting Width (in) | 48 |
| Cutting Height (in) | 1.5 - 5 |
| Spindles | Cast-iron |
| Deck Construction | Fabricated 10-gauge |
| Transmission | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans with oil coolers |
| Drive Axles (in) | 1 |
| Caster Tires (in) | 11 x 4-5 Flat-free |
| Drive Tires (in) | 20 x 7-10 |
| Ground Speed-Fwd (mph) | 0-7 |
| Ground Speed-Rev (mph) | 0-3 |
| Overall Length (in) | CC: 75 |
| Overall Width (in) Deflector Down/Deflector Up | 62.5 / 49.5 |
| Dry Weight (lbs) | 809 |
| Seat | N/A |
| Control Type | CC™ Centralized Control |
| Instrumentation | Dual-function hour meter, speed indicator |
| Parking Brake/Safety Circuit | Hand operated Internal transaxle brakeOperator presence, centralized foot activated neutral pedals, neutral start safety circuit/CC™ (Centralized Controls) or standard controls |
Accessories and Attachments
Mulch Kit
Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.
Grass Catcher
A lightweight durable fabric bag with hard plastic bottom attaches quickly. Capacity: 3.75 bushels. Fits: 48" and 52" models.
Metal Grass Catcher
Rugged steel-framed catcher has handles that make attaching and removing a breeze. Capacity: 4.3 bushels. Fits 48" and 52" models.
