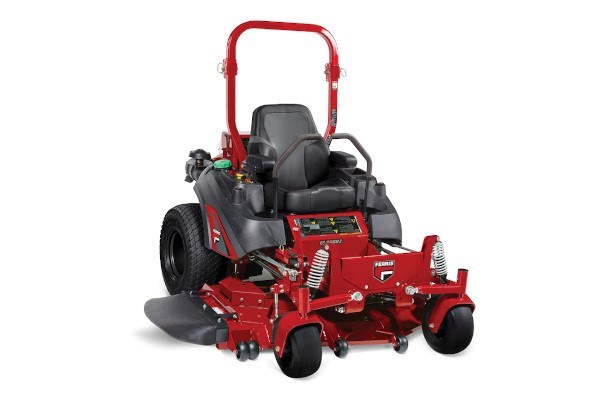

IS® 2600 Series 5901929
The IS® 2600 mower builds on the Ferris zero turn legacy, offering diesel power with premium features and enhanced productivity. Featuring our iCD™ Cutting System and long-life greaseable cast-iron spindles, this machine truly performs under the rigors of professional landscaping.
Features
Efficient Diesel Power
Efficient Yanmar™ 3-cyinder diesel engine provides lasting power in the most demanding of conditions.
Patented Suspension System
Consists of adjustable rear coil-over-shocks (shown) and front independent adjustable coil-over-shocks.
Accessibility
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
Serviceability
Quick-release latches allow for easy access to engine compartment.
Cast-Iron Spindles
Longer usable life, 1" shaft with top access grease fitting for greaseable dual ball bearings, six-bolt 8" flange design adds strength and greater dispersal of energy to deck assembly.
Foot-Operated Deck Lift
With adjustable pedal, can change cut height in 1/4" increments from 1.75"- 5".
Heavy-Duty Bumper
Heavy-duty integrated rear bumper protects engine compartment.
Smooth Steering
Patented steering system delivers exceptionally smooth performance.
Specs
| Model Number | 5901929/5901475 |
| Engine Brand | Yanmar™ diesel |
| Engine Power Rating * | 24 |
| Displacement (cc) | 904 |
| PTO | Electric |
| Cylinders | 3 |
| Starter | Electric |
| Fuel Type | Diesel |
| Fuel Tank Capacity (gal) | 11 |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in each tank |
| Cutting Width (in) | 61 |
| Cutting Height (in) | 1.75 - 5 |
| Spindles | Cast-iron |
| Deck Construction | iCD™ Cutting System |
| Suspension | Independent front control arms with large adjustable coil-over-shocks and a rear swing-arm with large adjustable coil-over-shocks |
| Transmission | Dual commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans |
| Drive Axles (in) | 1.375 |
| Caster Tires (in) | 13 x 6.5-6 |
| Drive Tires (in) | 24 x 12-12 |
| Ground Speed-Fwd (mph) | 0-10 |
| Ground Speed-Rev (mph) | 0-6 |
| Overall Length (in) | 86.25 |
| Overall Width (in) Deflector Down/Deflector Up | 76.75 / 63.5 |
| Dry Weight (lbs) | 1606 |
| Seat Package | Premium mid-back with arm rests |
| Certified Roll-over Protection System | Standard, 180° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls |
| Parking Brake / Safety Circuit | Hand-operated internal transaxle brake |
Accessories and Attachments
Mulch Kit
Select kits include dedicated mulching blades, baffels, hardware and instruction sheet.
Trailer Hitch Kit
Will accept a 1/2” shank ball and comes complete with hardware.
LED Light Kit
Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.
Flat-Free Caster Tires
Run all day with no flats.
Lawn Striping Kit
Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.
Service Jack
Heavy-duty steel bracket and jack allow for easy and convenient access under the deck.
