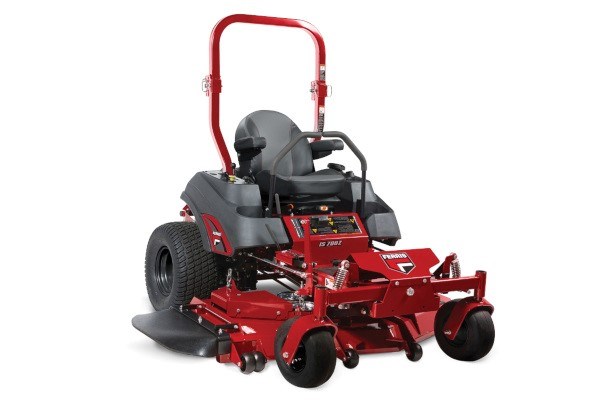

IS® 700 Series 5902107
Mow more lawn in less time. The IS® 700 Series, with up to five feet of cutting width, features our patented suspension technology, iCD™ Cutting System, heavy-duty Hydro-Gear ZT-3200® drive system, and a top speed of 10 mph. This mower is full of features to improve the quality of cut and increase productivity and comfort.
Features
Patented Suspension
Pivoting front axle plus small shocks and medium rear shocks allow the wheels to follow the ground and improve comfort in a wide variety of conditions.
Exceptional Performance
The well-tuned steering system delivers smooth and confident operation for excellent performance time after time.
Integrated Transmissions
Commercial Hydro-Gear® ZT-3200™ transaxles are designed for high performance and are fully serviceable.
Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
iCD™ Cutting System
The iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. Every component works together to achieve superior cut quality and longer component life.
Mower Spindles
Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.
Heavy-Duty Bumper
Heavy-duty bumper protects the engine while also allowing for easy service access.
Ride-On Mower Warranties†
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
Acres Per Hour
Mows up to 5 acres per hour, based on 80% efficiency.
Miles Per Hour
Up to 10 MPH ground speed, reverse 5 MPH.
Specs
| Model Number | 5902107 |
| Engine Brand | Briggs & Stratton® CXi |
| Engine Power Rating * | 27 |
| Displacement (cc) | 810 |
| PTO | Electric |
| Cylinders | 2 |
| Starter | Electric |
| Fuel Type | Gasoline |
| Fuel Tank Capacity (gal) | 5.5 |
| Cutting Width (in) | 52 |
| Cutting Height (in) | 1.5 - 5 |
| Spindles | Aluminum Greaseable |
| Deck Construction | iCD Cutting System™ |
| Suspension | Adjustable front and rear coil-over shocks with pivoting front axle and a rear swing-arm with large adjustable coil-over shocks |
| Transmission | Dual, commercial Hydro-Gear ZT-3200® Transaxles with 7" cooling fans |
| Drive Axles (in) | 1.125 |
| Caster Tires (in) | 13 X 6.5-6 |
| Drive Tires (in) | 22 X 11-10 |
| Ground Speed-Fwd (mph) | 0-10 |
| Ground Speed-Rev (mph) | 0-5 |
| Overall Length (in) | 81 |
| Overall Width (in) Deflector Down/Deflector Up | 65/57 |
| Dry Weight (lbs) | 1059 |
| Seat Package | Mid-back suspension seat with adjustable arm rests |
| Certified Roll-over Protection System | Standard, 180° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls. |
| Parking Brake / Safety Circuit | Internal transaxles |
| Engine Configuration | Briggs & Stratton® |
Accessories and Attachments
Turbo-Pro™ Double Bag Hard Top Collection System
Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal.
Capacity: 10 cubic feet. Fits 52" and 61" models.
Mulch Kit
Select kits include dedicated mulching blades, baffels, hardware and instruction sheet.
Trailer Hitch Kit
Will accept a 1/2” shank ball and comes complete with hardware.
Striping Kit
Rubber flap lays down grass to create patterns across the landscape.
Premium Seat
High quality adjustable seat features red trim with adjustable arm rests for added comfort.
Flat-Free Caster Tires
Run all day with no flats, eliminates down time.
LED Light Kit
Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.
Service Jack
Heavy-duty steel braket and jack allows for easy and convenient access under the deck.
