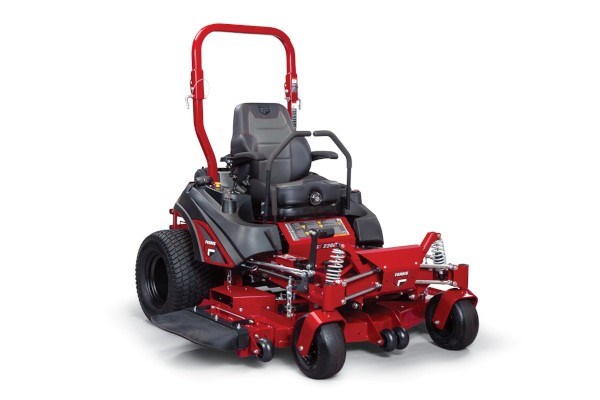

ISX™ 2200 Series 5902078
Take productivity and comfort up a notch. The ISX™ 2200 boasts our most advanced suspension technology – ForeFront™ Suspension, ensuring operator comfort. A 2-belt iCD™ cutting system delivers unrivaled cut quality and the heavy-duty Hydro-Gear® ZT-4400™ Transaxle drive system provides power and durability to get the job done.
Features
ForeFront™ Suspension System
The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
Vanguard BIG BLOCK™ Engine
The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 40 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)
Premium Suspension Seat
Select models feature the premium high-back suspension seat with armrests, adjustable lumbar and back recline. (ISX3300 also includes a headrest)
Hydro-Gear ZT-4400™ Transaxles
Dual-commercial transaxles with 8.3" cooling fans to repel debris.
Adjustable Cut Height
Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".
Ride-On Mower Warranties
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
Specs
| Model Number | 5902078 |
| Engine Brand | Vanguard™ 810cc EFI with Oil Guard |
| Engine Power Rating * | 28 |
| Displacement (cc) | 810 |
| PTO | Electric |
| Cylinders | 2 |
| Starter | Electric |
| Fuel Type | Gasoline |
| Fuel Tank Capacity (gal) | 11 |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in each tank |
| Cutting Width (in) | 60 |
| Cutting Height (in) | 1.5 - 5 |
| Spindles | Cast-iron greaseable |
| Deck Construction | iCD™ Cutting System, 2-Belt |
| Suspension | ForeFront™ Suspension System |
| Transmission | Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans |
| Drive Axles (in) | 1.375 |
| Caster Tires (in) | 13 x 6.5-6 |
| Drive Tires (in) | 24 x 12-12 |
| Ground Speed-Fwd (mph) | 0-10 |
| Ground Speed-Rev (mph) | 0-5 |
| Overall Length (in) | 82.5 |
| Overall Width (in) Deflector Down/Deflector Up | 74 / 65 |
| Dry Weight (lbs) | 1405 |
| Seat Package | Premium high-back Suspension Seat with adjustable arm rests, adjustable lumbar and back recline. |
| Certified Roll-over Protection System | 180° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls |
| Parking Brake / Safety Circuit | Hand operated Internal transaxle brake |
| Engine Configuration | Vanguard™ |
Accessories and Attachments
Turbo-Pro™ or Fast-Vac® Triple Bag Soft Top Collection System
Tripe Bag Soft Top is simple to install. Each heavy-duty mesh has a rugged plyethylene underside with an integrated handle to assist with removal. Fits 52" and 61" models. Capacity: 13 cubic feet.
Turbo-Pro™ Double Bag Collection System
The double bag collection system is simple to install. Each heavy-duty mesh bag has a rugged polyethylene underside with integrated handle to assist with removal. Fits 52" models.
Fast-Vac® EZ Dump™ Collection System
The EZ Dump™ increases productivity by giving the operator the ability to release grass clippings from the riding mower seat with the use of a toggle switch. The hopper is specially lined to ensure that all materials are dumped each time for increased productivity. The low profile of this system is better for visibility when compared to competitive commercial lawn mower attachments. Fits 52" and 61".
Striping Kit
Rubber flap lays down grass to create patterns across the landscape.
Mulch Kit
Select kits include dedicated mulching blades, baffles, hardware and instruction sheet.
Trailer Hitch Kit
Will accept a 1/2” shank ball and comes complete with hardware.
Flat-Free Caster Tires
Run all day with no flats, eliminates down time.
Service Jack
Heavy-duty steel bracket and jack allows for easy and convenient access under the deck.
LED Light Kit
Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.
