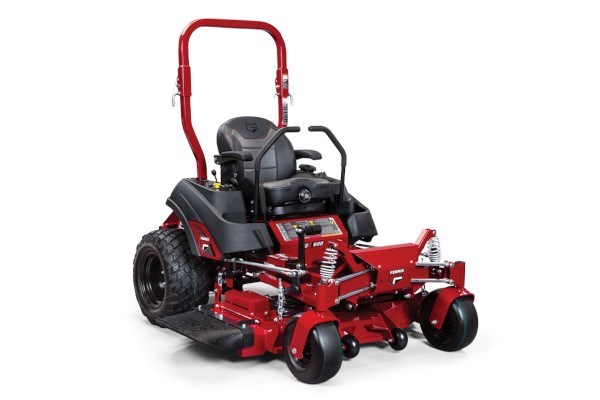

ISX™ 800 Series 5902075
The ISX™ 800 is engineered to increase efficiency and comfort. Combining next-generation Ferris® technology - ForeFront™ Suspension with a 2-belt iCD™ Cutting System, means a smoother ride and improved cut.
Features
ForeFront™ Suspension System
The system utilizes four upper and lower control rods that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.
EFI-ETC Engine Technology
Select models feature the Briggs & Stratton Commercial Series engine with EFI-ETC technology for easy starting and smooth performance.
Integrated Transmission
Commercial Hydro-Gear® ZT-3400™ transaxles, with 7" cooling fans, are designed for high performance and are fully serviceable.
Easy Access
Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.
iCD™ Cutting System
iCD™ Cutting System was engineered to produce the best possible cut in a multitude of conditions. The ISX™ 800 is equipped with a 2-belt deck and provides a 3-year belt limited warranty (See operator’s manual for complete warranty details).
Mower Spindles
Cast-aluminum greaseable spindles feature 1” shaft with 2.5” x 1” dual ball bearings with top access grease fittings and pressure relief valve.
Ride-On Mower Warranties
Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.
Miles per Hour
Up to 10 MPH ground speed, reverse 5 MPH.
Specs
| Model Number | 5902075 |
| Engine Brand | Briggs & Stratton® CXi |
| Engine Power Rating * | 27 |
| Displacement (cc) | 810 |
| PTO | Electric |
| Cylinders | 2 |
| Starter | Electric |
| Fuel Type | Gasoline |
| Fuel Tank Capacity (gal) | 5.5 |
| Hour Meter/Instrumentation | Dual-function hour meter, fuel level gauge in tank |
| Cutting Width (in) | 60 |
| Cutting Height (in) | 1.5 - 5 |
| Spindles | Aluminum Greaseable |
| Deck Construction | iCD™ Cutting System, 2-Belt |
| Suspension | ForeFront™ Suspension System |
| Transmission | Dual commercial Hydro-Gear® ZT-3400® transaxles with 7" cooling fans |
| Drive Axles (in) | 1.125 |
| Caster Tires (in) | 13 x 6.5-6 |
| Drive Tires (in) | 23 x 10.5-12 |
| Ground Speed-Fwd (mph) | 0-10 |
| Ground Speed-Rev (mph) | 0-5 |
| Overall Length (in) | 81 |
| Overall Width (in) Deflector Down/Deflector Up | 74/65 |
| Dry Weight (lbs) | 1268 |
| Seat Package | Mid-back suspension seat with adjustable arm rests |
| Certified Roll-over Protection System | 180° foldable |
| Controls / Safety Group | Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls. |
| Parking Brake / Safety Circuit | Hand operated Internal transaxle brake |
| Engine Configuration | Briggs & Stratton® |
Accessories and Attachments
Turbo-Pro™ Double Bag Hard Top Collection System
Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal.
Capacity: 10 cubic feet. Fits 52" models.
Turbo-Pro™ Triple Bag Hard Top Collection System
Innovative molded hard top design allows for increased capacity. Simple to install. Each heavy-duty mesh bag has an integrated handle to assist with removal. Capacity: 15 cubic feet. Fits 52" and 61" models.
Trailer Hitch Kit
Will accept a 1/2” shank ball and comes complete with hardware.
Service Jack
Heavy-duty steel bracket and jack allows for easy and convenient access under the deck.
LED Light Kit
Energy efficient heavy-duty ROPS mounted LED light kit with simple instructions.
Mulch Kit
Select kits include dedicated mulching blades, baffels, hardware and instruction sheet.
Flat-Free Caster Tires
Eliminate downtime by running all-day with flat-free caster tires. Comes standard on select models.
Lawn Striping Kit
Rubber flap system lays down clippings to create eye catching grass patterns across the landscape.
